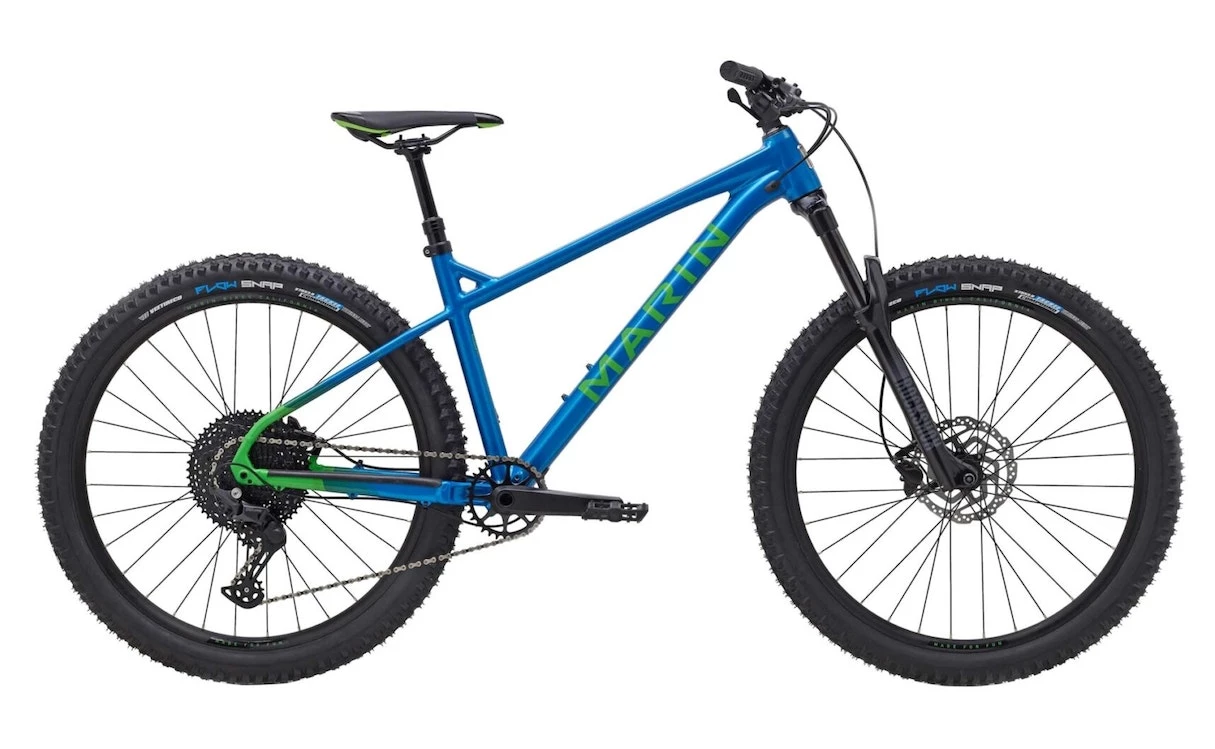

Marin San Quentin 2 2022 | Hardtail

The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities & extended air time.

Specifications

FRAME

Series 3 6061 Aluminum, Double Butted Frame, Internal Shifter & Dropper Post Routing, External Brake, 12x148mm Thru-Axle, 73mm Threaded BB

FRONT SUSPENSION

RockShox Recon RL, 110x15mm Boost Spacing, Fast Black Stanchions, 130mm Travel, Bolt-On Thru-Axle

RIMS

Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible

HUB, REAR

Shimano HF-MT400B, 148×12, Centerlock, Standard Freehub Body

HUB, FRONT

Shimano HF-MT400B, 110x15mm, Centerlock

SPOKE, NIPPLES

14g Black Stainless Steel

TIRES

Vee Tire Co, Flow Snap, 27.5×2.6″, MPC Compound, Wire Bead

DERAILLEUR, REAR

Shimano Deore, 11-Speed, SGS

DERAILLEUR, FRONT

–

SHIFT LEVER

Shimano Deore, 11-Speed, SL-5100R

CRANKSET

Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

BOTTOM BRACKET

External Sealed Cartridge Bearing

CHAIN

KMC X-11 Silver & Black

CASSETTE

SunRace, 12-Speed, 11-51T, ED Black

BRAKE, FRONT

Shimano BR-MT201 Hydraulic Disc Brake, 180mm Rotor

BRAKE, REAR

Shimano BR-MT201 Hydraulic Disc Brake, 180mm Rotor

BRAKE LEVERS

Shimano BR-MT201 Hydraulic Disc

HANDLEBAR

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM

Marin 3D Forged Alloy, 45mm

GRIPS

Marin MTN, Closed End

HEADSET

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8″ x 1 1/2â€

SEATPOST

TranzX, YSP18, 1x Remote, Size S 125mm Travel, Size M-XL 150mm Travel, 30.9mm

SADDLE

Marin Speed Concept

PEDALS

Nylon Platform

EXTRAS

–
