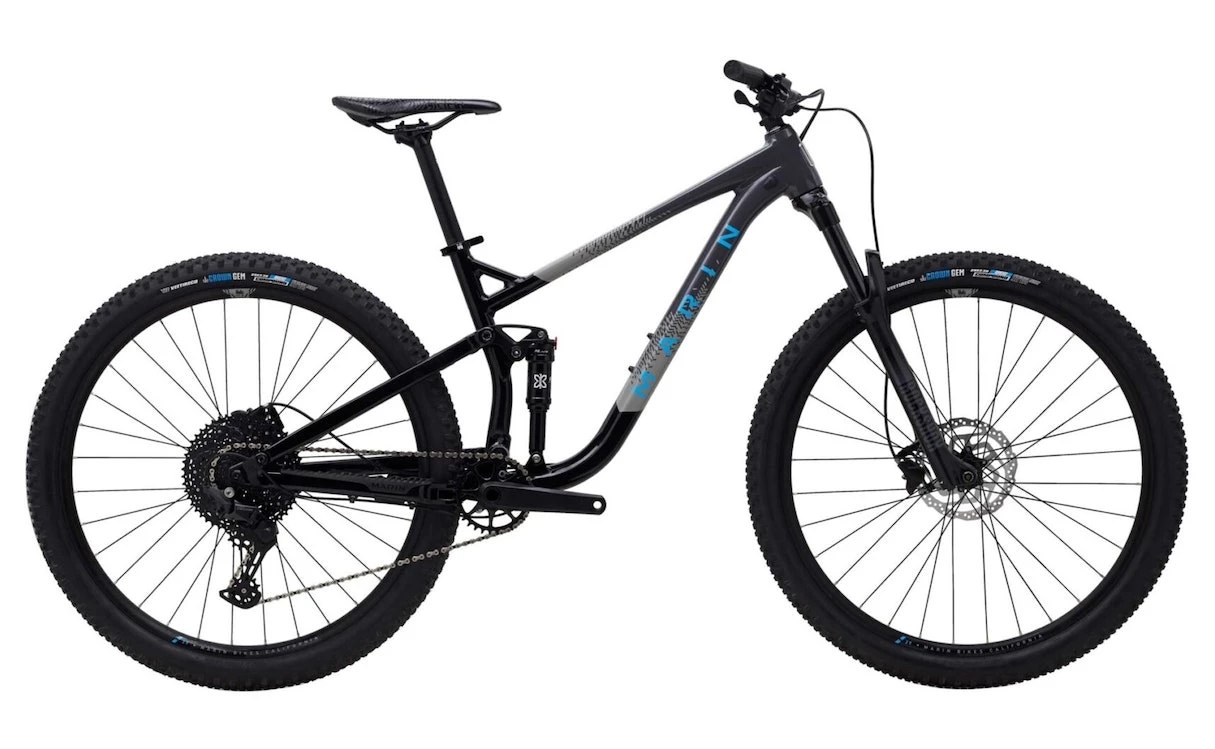

Marin Rift Zone 29 1 2022 | Full Suspension

The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed & roll over capabilities of 29†wheels in a trail capable package. Long, low, & slack trail geometry is more aggressive than an XC race bike for more control at top speed, & more fun while chasing seconds.

Specifications

FRAME

Series 3 6061 Aluminum Frame, 29†Wheels, 125mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148×12), 73mm Threaded BB w/ ISCG05 Tabs

FORK

RockShox Recon Silver RL 29″, 130mm Travel, Solo Air, Compression & Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 42mm Offset

SHOCK

X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top & Bottom

RIMS

Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

HUB REAR

Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body

HUB FRONT

Shimano HF-MT400B, 110x15mm, Centerlock

SPOKES

14g Black Stainless Steel

TIRES

Vee Tire Crown Gem 29×2.35″, Dual Control Compound, Tubeless Ready

DERAILLEUR REAR

Shimano Deore SGS, Shadow Plus, Direct Attachment, 11-Speed

DERAILLEUR FRONT

–

SHIFT LEVER

Shimano Deore, 11-Speed, SL-5100R

CRANKSET

Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

BOTTOM BRACKET

External Sealed Cartridge Bearing

CHAIN

KMC X-11 Silver & Black

CASSETTE

SunRace, 11-Speed, 11-51T, ED Black

BRAKES FRONT

Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

BRAKES REAR

Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

BRAKE LEVERS

Shimano BL-MT201 Hydraulic Disc

HANDLEBAR

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM

Marin 3D Forged Alloy, 35mm

GRIPS

Marin MTN, Closed End

HEADSET

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8″ x 1 1/2â€

SEATPOST

Marin Alloy, 30.9mm

SADDLE

Marin Speed Concept

PEDALS

–

EXTRAS

Closed 9-12 Thru-Axle QR System
