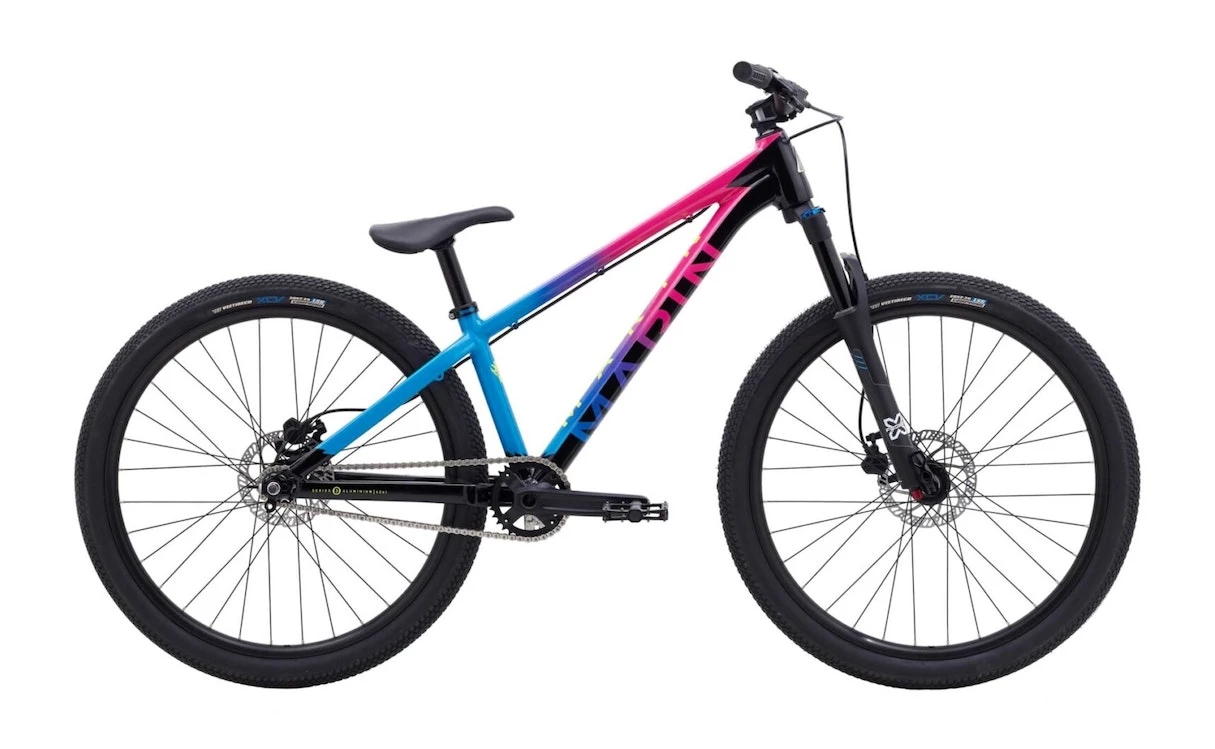

Marin Alcatraz 2022 | Rigid

The Alcatraz was designed from the ground up to be the best dirt jump & slopestyle bike you have ever ridden. We worked hand- in-hand with Matt Jones to define the exact needs of a modern dirt jump frame, & are proud to release the complete Alcatraz into the world. The 6061 Series 3 aluminum alloy frame is stiff & overbuilt for abuse, with a tapered headtube & 135x10mm horizontal drop outs. Available solely as a complete bike, so there is less time between you & throwing big whips & flips.

Specifications

FRAME

Series 3 6061 Aluminum Frame, 26†Wheels, 135x10mm Horizontal Dropouts, 73mm Threaded BB, ISCG 05 Tabs

FRONT SUSPENSION

X Fusion Slant RL2 26″, 100mm Travel, 100x15mm Thru-Axle, Air Spring, Compression & Rebound Adjust, Tapered Alloy Steerer tube, 40mm Offset

REAR SUSPENSION

–

RIMS

Marin Custom Extrusion, 27mm Inner, Pinned Joint

HUB, REAR

Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, 32H

HUB, FRONT

Forged Alloy, 100x15mm, 32H

SPOKE, NIPPLES

14g Black Stainless Steel

TIRES

Vee Tire, XCV 26×2.25â€, LSG Compound, Wire Bead

DERAILLEUR, REAR

–

DERAILLEUR, FRONT

–

SHIFT LEVER

–

CRANKSET

Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD

BOTTOM BRACKET

External Sealed Cartridge Bearings

CHAIN

KMC HL-710

CASSETTE

14T Single Speed Cog

BRAKE, FRONT

Tektro HDM275 Hydraulic Disc Brake, 160mm Rotor

BRAKE, REAR

Tektro HDM275 Hydraulic Disc Brake, 160mm Rotor

BRAKE LEVERS

Tektro HDM275

HANDLEBAR

Marin Riser, 6061 Double Butted Aluminum, 38mm Rise, 750mm Width, 4º Up, 9º Back

STEM

Marin 3D Forged Alloy, 40mm

GRIPS

Marin Single Clamp Locking

HEADSET

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8″ x 1 1/2â€

SEATPOST

Marin Pivotal DJ, 30.9mm

SADDLE

Marin Pivotal DJ Saddle

PEDALS

Alloy Platform

EXTRAS

Marin Chain Tension Device
